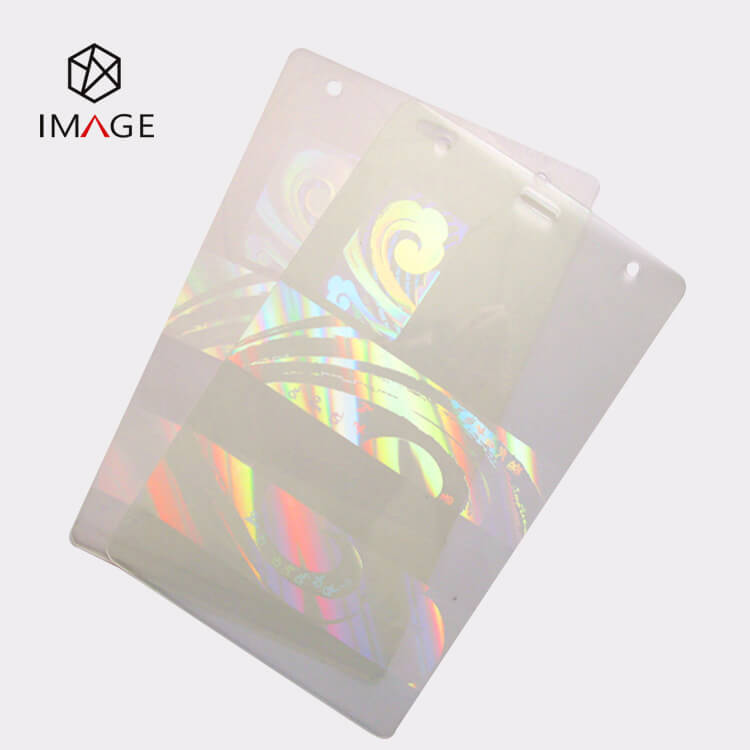

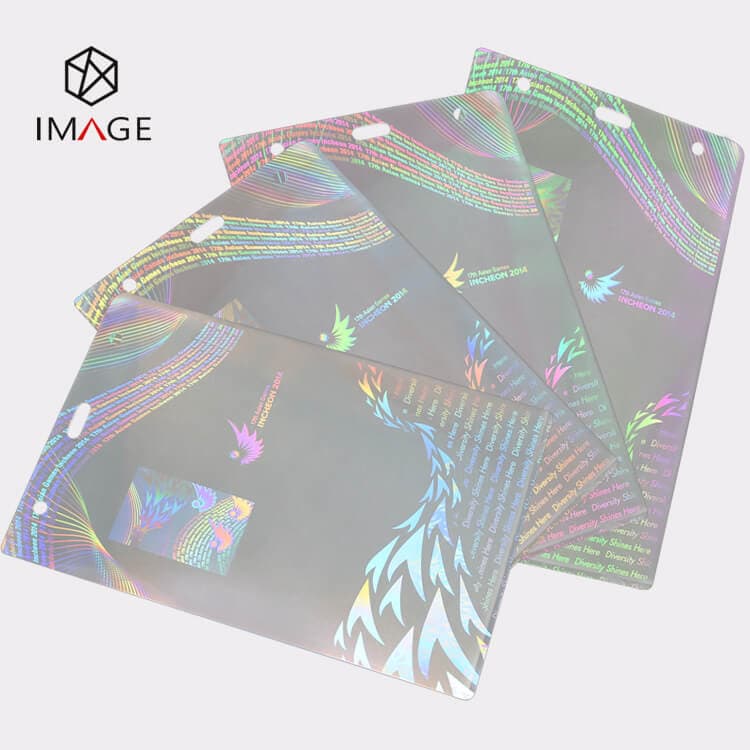

Holographic Laminate Pouches

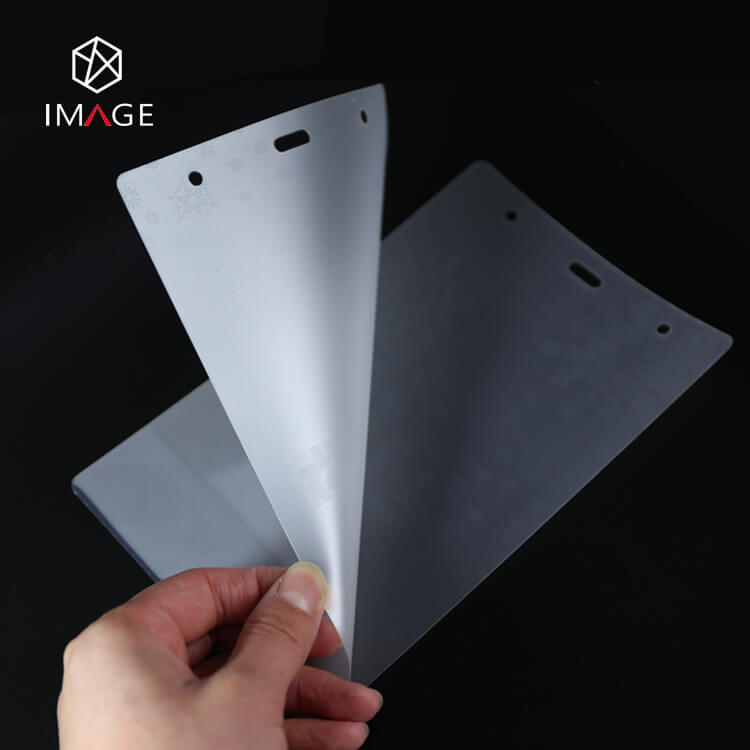

These hologram lamination pouches are made of PET (polyester film) as the substrate, and usually adopts double-layer paired with single-sided sealing symmetrical envelope structure.
After being laminated with the holographic pouch, the certificate is rigid, not easy to crack, and has the advantages of moisture resistance, fading resistance, tamper resistance, and long-term storage.
Generally, the front layer of laminating pouches adopts physical optical anti-counterfeiting design, which has good transparency and does not affect the display of certificate information. The fluorescent security ink can also be printed on the back layer. At the same time, it has a flexible size, simple certification machine, and other features.

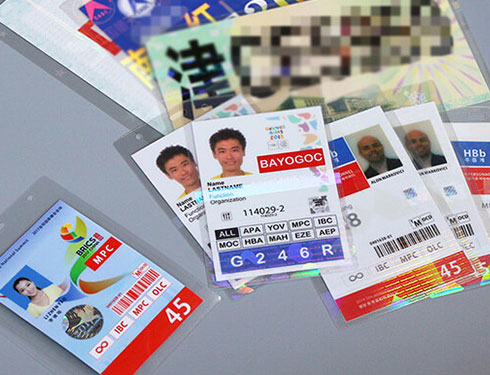

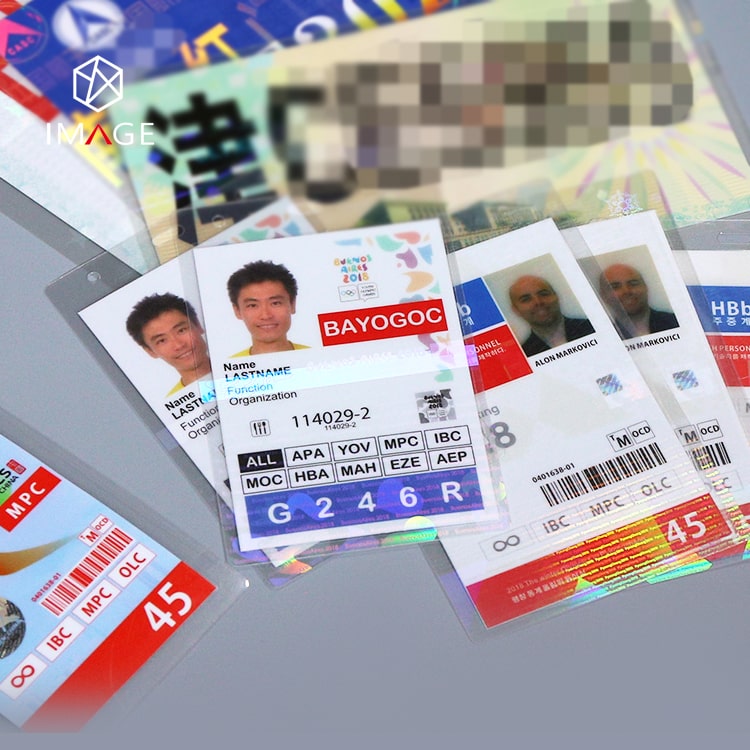

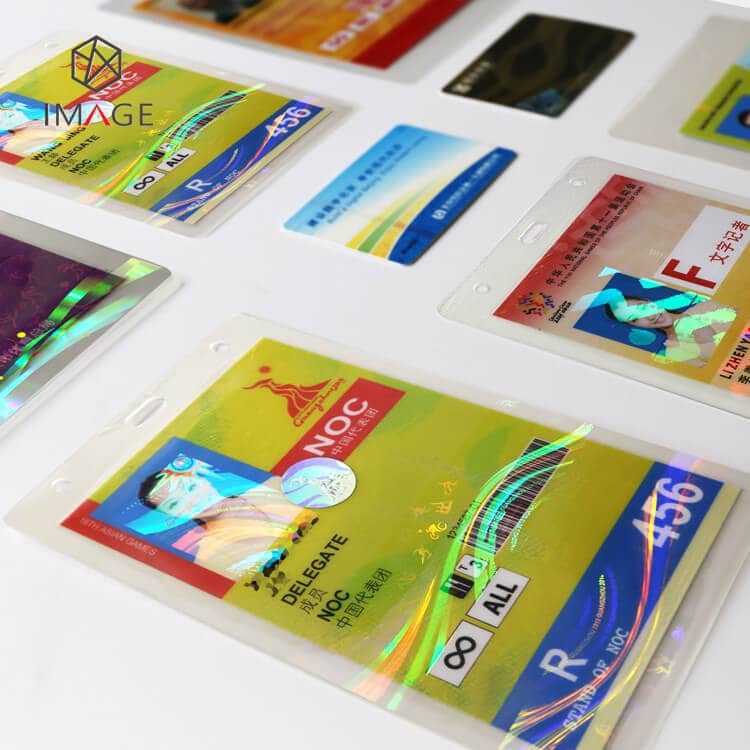

Most paper card documents use this holographic laminating pouch for security protection after sealing, ID Cards sealing after printing. Widely used for conference documents, pass documents, representative cards, interview cards, duty certificates, permits, business licenses, etc.
| Features of Hologram Laminate Pouches |
| Types of Holographic Laminating Pouches |

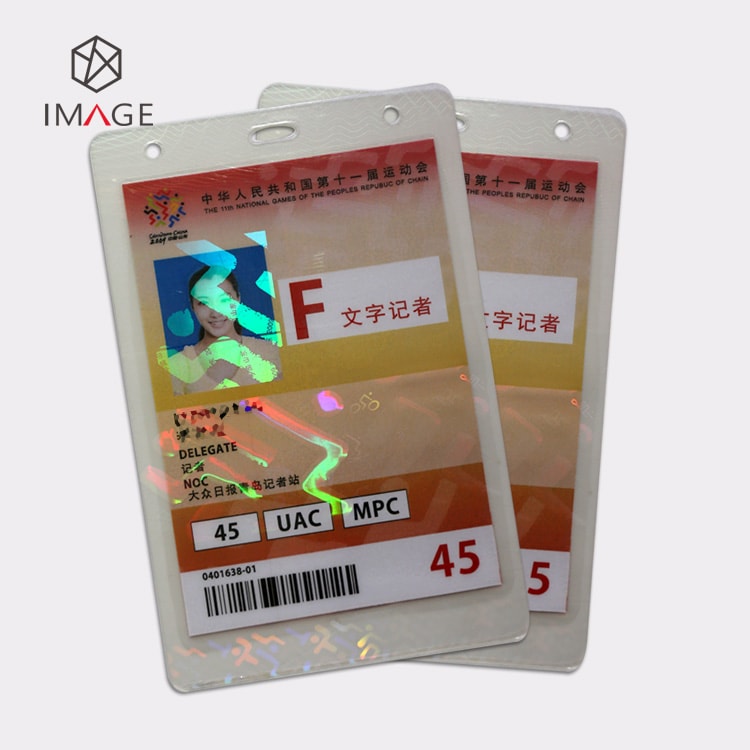

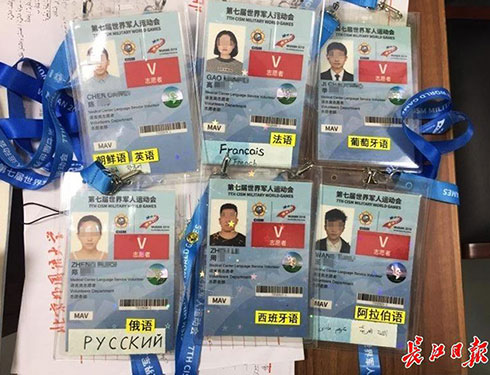

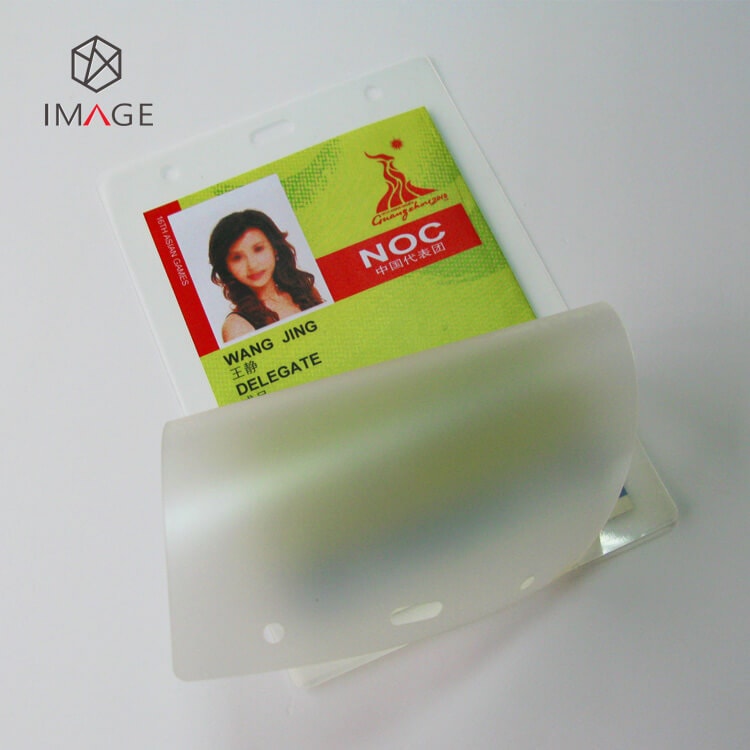

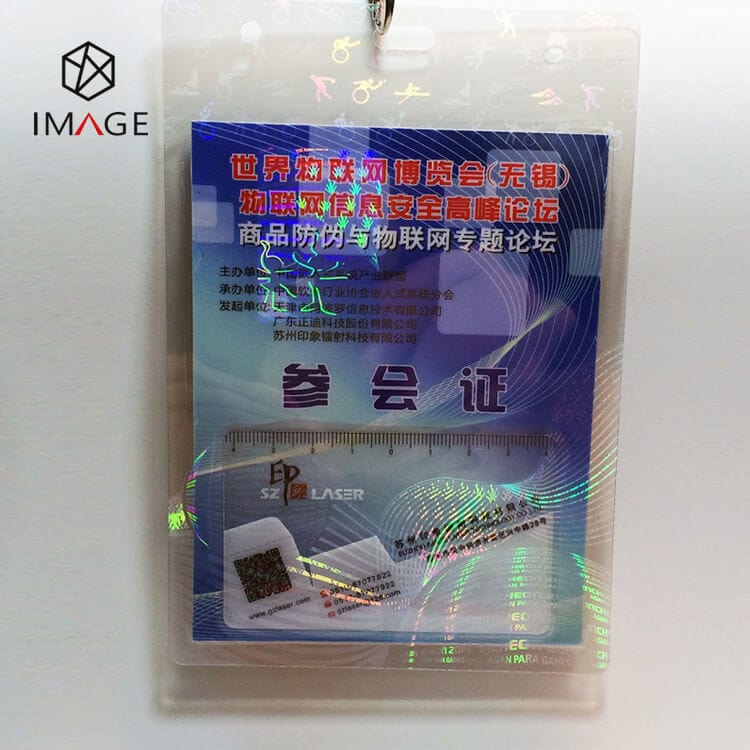

Suzhou Image Laser is one of the many well-known holographic laminating pouch suppliers in china. The hologram laminating pouch produced by our company mostly for big size hanging type badge, used widely in large activities, meeting places, and the pass for the venues.

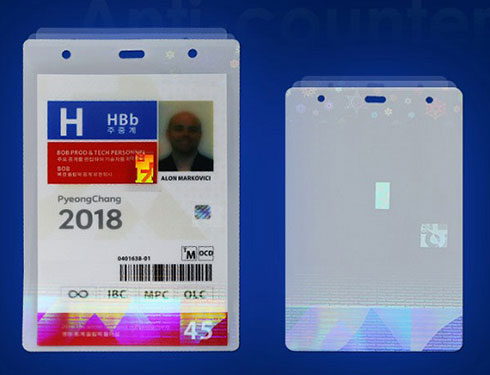

At present, our company has cooperated with more than 100+ government projects, including the 2008 Bejing Olympic Games, 2018 Pyeongchang Olympic Games, Buenos Aires 2018 Youth Olympic Games, National IDs & Driving License.
Optional thicknesses and sizes of Holographic Laminating Pouches
| Size(mm) | PET+EVA (Thickness in mil) | PET+EVA (Thickness in micron) |

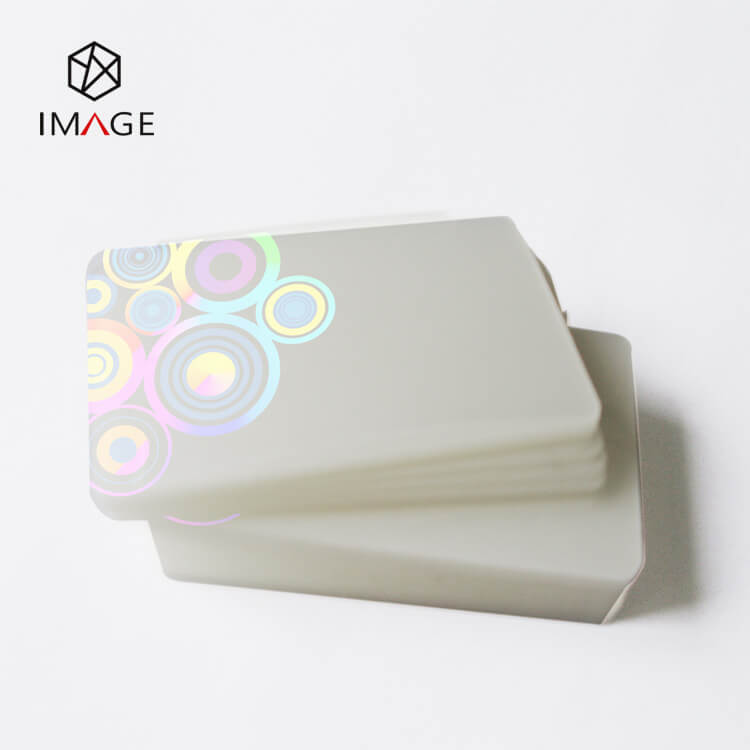

| 54X86 | 1.5 mil | 38.1 micron |
| 70X100 | 3 mil | 76.2 micron |

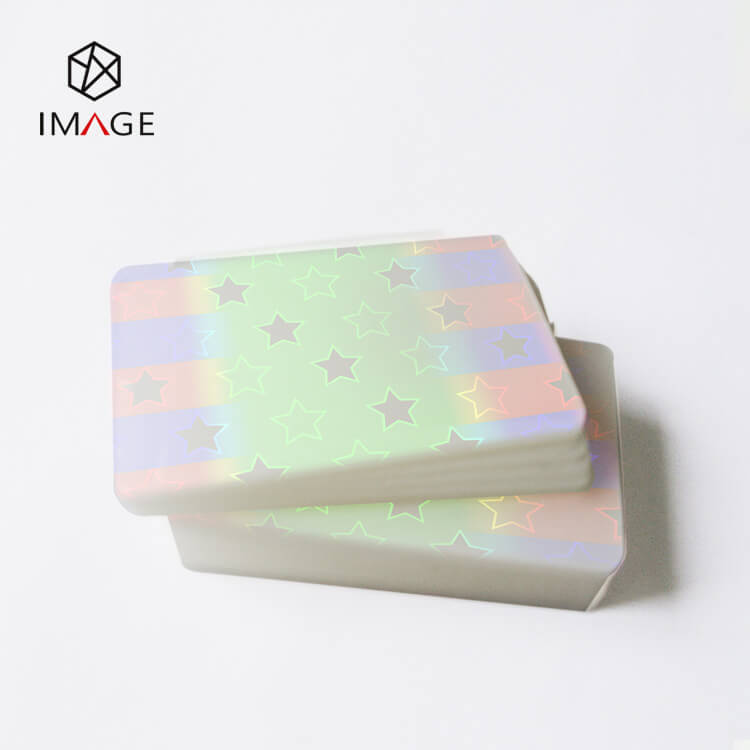

| 95X135 | 5 mil | 127 micron |
| 110X170 | 8 mil | 200 micron |
| 130X190 | 10 mil | 254 micron |
| 175X225 | 20 mil | 500 micron |
| 216X303 | 25 mil | 635 micron |
| 303X426 | 30 mil | 800 micron |
| Holographic Lamination Pouches Gallery |
| Using Advice of Holographic Laminate Pouches|
| Operational environment | The lamination temperature is 130°C – 150°C, speed is 10mm-15mm/S. Ensure inner core material, thickness, size before sealing, pouch size bigger than inner core, each edge 5mm at least. |
| Storage environment | 20°C – 30°C, Humidity 45%-60% |
| Executive standard | GB/T 16422.2-2014 |
| Problems and Corresponding Solutions of Holographic Lamination Pouches |
| Questions | Reasons | Solutions |
|---|---|---|
| Foggy white spots | Temperature not reached set data | Operate after laminator reach the temperature |
| Set temperature not enough | Set temperature to required for corresponding lamination pouch thickness | |
| Bubble | Too high temperature | Set lower temperature |
| Laminator roller with impurities | Clean roller to ensure NO impurities | |
| Hologram pouch with wrinkles | Too high temperature | Set lower temperature |
| Laminator roller is uneven | Check roller is flat | |
| Pouch not placed flat | Pouch placed flat and put pouch into laminator | |
| Not laminated | Low temperature | Set higher temperature |
| Four sides not laminated or bubbles at the blank | Laminator roller pressure is not enough | Tighten roller pressure |
| Low temperature | Set higher temperature |
| Hologram Lamination Pouch Price |
The lamination pouch price is different based on various sizes, colors, design, and security features requirements. The exact price depends on the below details. Please send us your requirements.
| Size | Thickness | Pattern | Quantity | Security Level |
| Yes | Yes | Yes | Yes | Yes |
If you have specific requirements of size, thickness, pattern, and security level, please send an inquiry, we will quote you the exact price ASAP.
