The holographic cold laminate overlay is a clear optical anti-counterfeiting film with viscous pressure-sensitive adhesive on the back. It’s also known as self adhesive hologram overlay and large size holographic overlay sticker. Even some people call it a peel and stick label.

It can be used for various printed plastic cards, membership cards, and staff IDs, and offer an easy way to increase the security and durability of your id cards without the need for any laminating equipment.

Ask for Price

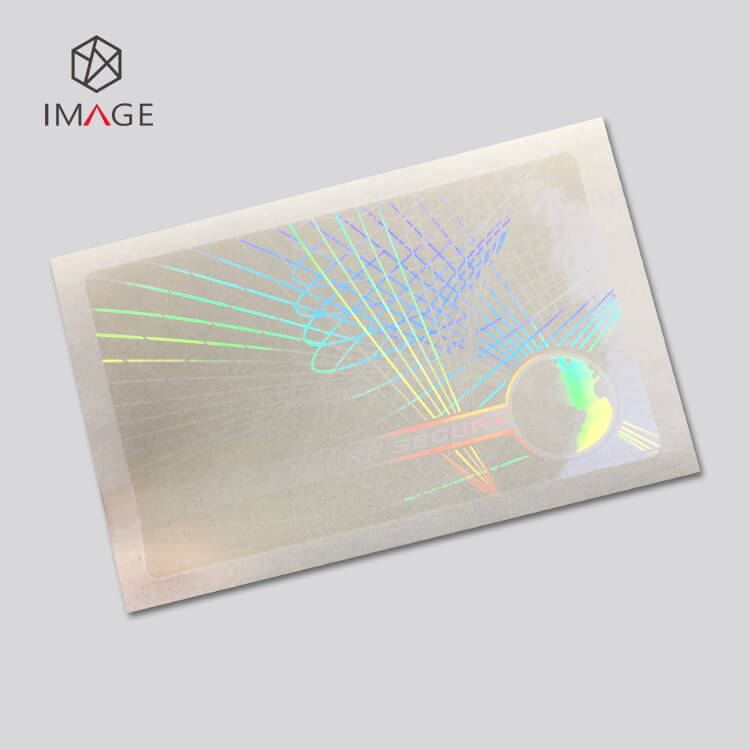

transparent holographic cold laminate overlay-for Pass IDs

In many custom holographic overlays, the optical cold laminate overlay is the quickest and most affordable way to add visual security to a variety of cards. It is pre-die cut into the shape of the card body (about 1mm smaller on each edge than the standard CR 80 Card). It can be attached to the surface of the id card base by hand easily, very convenient.

Thereby it is very suitable for the remote area or temporary office, it’s manually, widely used for border area, nomads, village, and other places, where has no stable power supply.

holographic cold laminate overlays for id cards
holographic cold laminate overlays for id cards
Ask for Price

In order to meet specific requirements, the self-adhesive hologram overlay can be customized or generic designed. The custom design is made specifically for you, and the general design is suitable for everyone.

After several hours of lamination, the generic pattern clear self-adhesive holographic overlay can work well with the ID card. It will not come off easily and protect personal information from anti-counterfeiting and tampering. Good transparency ensures that personal information will not be covered up and is easy to identify.

| Features of Optical Cold Laminate Overlay |

  • Accept the customized laminate solution.
  • Have a strong ability to resistant to scratches.
  • Suitable for PVC or PET cards, like worker ID cards, personal cards.
  • Protect personal data from counterfeiting, tampering & daily abrasion.
  • Film size is smaller than CR80 cards as 1mm for each edge.
  • Usage is convenient and flexible, the optical cold laminate overlay can be covered on cards manually.

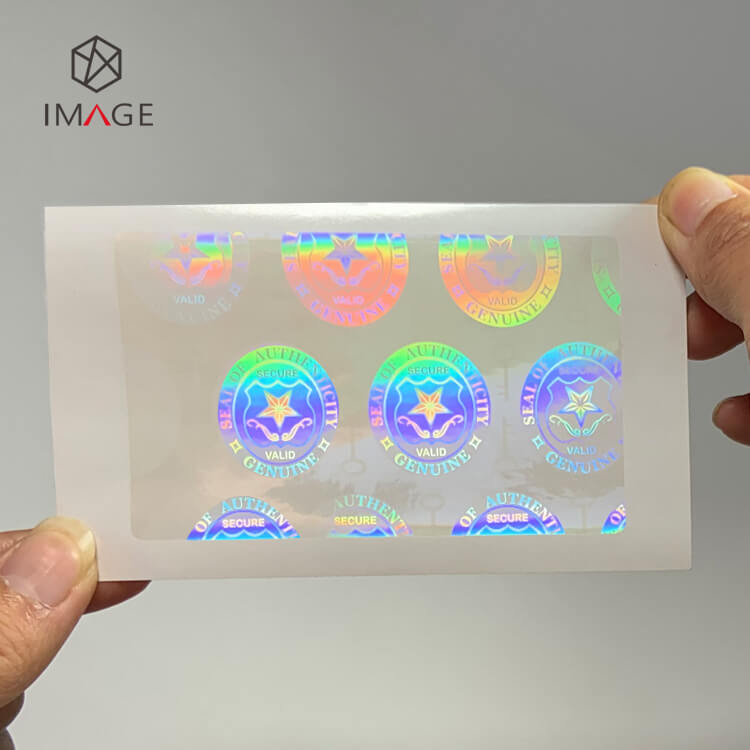

| Self Adhesive Holographic Overlays Gallery |

At present, Suzhou Image Laser has developed a total of nine generic design hologram self-adhesive overlays, which are very popular in the market. They have better transparency and basic anti-counterfeiting features.

Four of them are currently in stock and you can order directly. Of course, we can also customize according to your own pattern, this kind of MOQ is slightly higher.

Ask for Price

Specification of Optical Cold Laminate Overlay |


| How to Laminate Hologram Overlay Stickers |

Peeling one angle of transparent hologram overlay stickers from silicon paper, alignment film and id card position slowly, then peeling off silicon paper while laminating overlay film with cards, till the film cover whole card.

How to Stick the Hologram Cold Laminate Overlay to ID Card
Ask for Price

Usage Advice of Hologram Cold Laminate Overlay |

Operational environmentEnsure clear card surface, stick it at normal temperature
Preservation environmentAmbient temperature 20°C – 30°C, Humidity 45%-60%
Executive standardGB/T 4851-2014
Based cardPVC/ PETG/ PC
Common problem1, Deviation between security film and card 2, Dust on card surface cause poor binding force, bubbles and bumps

| Key Quality Index (KQI) |

Initial adhesion3# steel ball
Cohesive force≥48h
Peeling strength0.15N/mm

The performance index in the table is typical value for reference, not guarantee value, please confirm all details to contract. Above indicator data may be further improved with technology and machine update, please contact us to confirmed all details.
